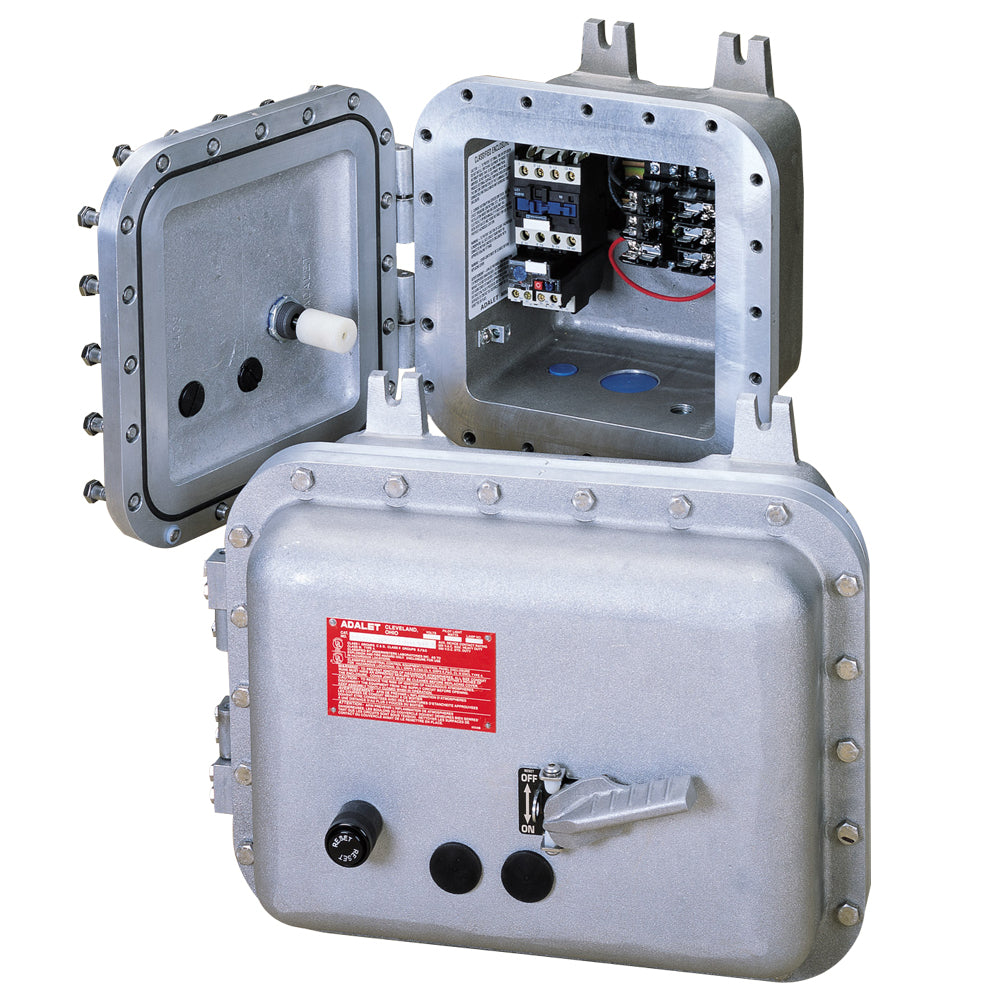

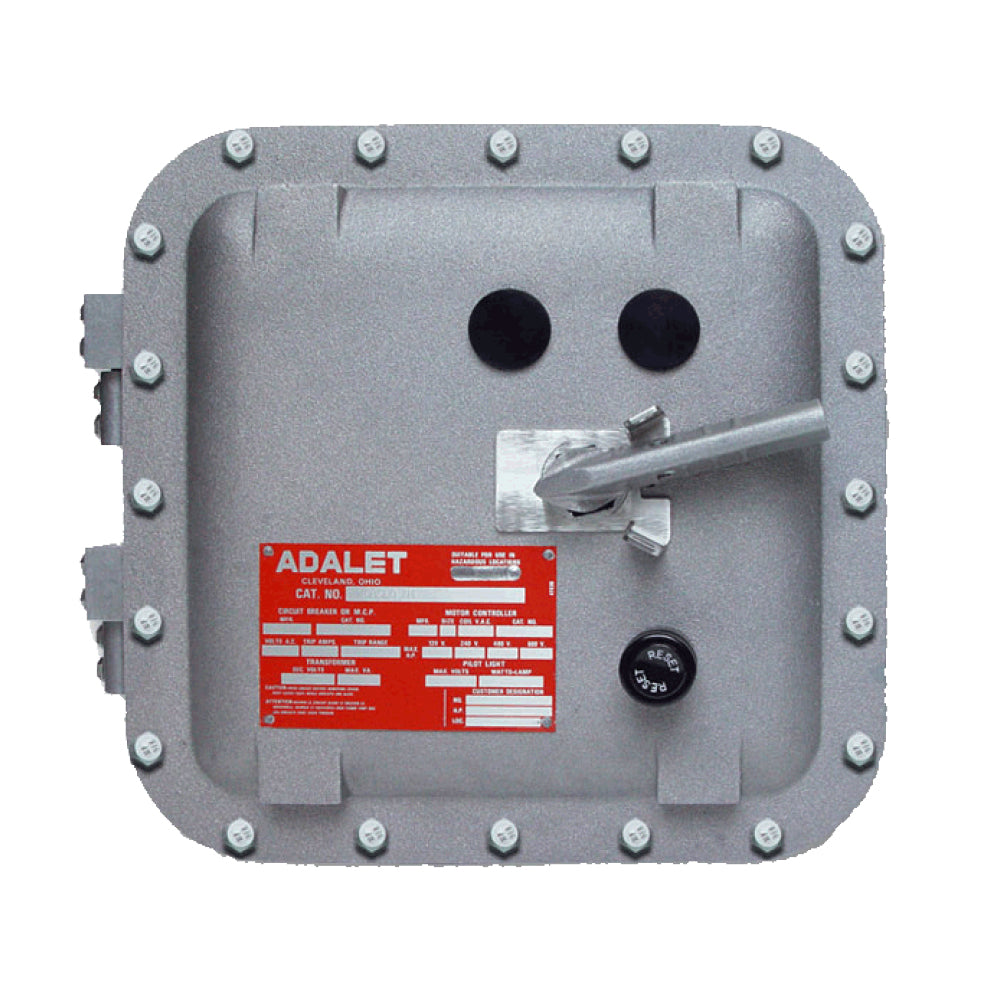

Explosionproof Combination Motor Starter - XCBS Combination Motor Starter Enclosures / Assemblies

Explosionproof Combination Motor Starter - XCBS Combination Motor Starter Enclosures / Assemblies

Standard Features

• Motor starters are reversing or non-reversing and are rated 5HP to 200HP

• Circuit breakers are thermal magnetic type and are rated from 15A to 800A

• Through the door mechanical reset button and circuit breaker handle

• Aluminum hinge with stainless steel hardware

• Padlockable handle

• Galvanized steel inner mounting panel

• One-piece, NEMA 4 water-tight gasket

• Premium, high-strength stainless steel captive cover bolts

• Internal grounding provisions

• Cast-on mounting feet

• Tumblast surface preparation for uniform, natural, aluminum finish

• Standard drilled & tapped conduit configurations

Design Options

• Aluminum (XSA) inner mounting panels

• Non-removable hinges

• Customer specified drilling and tapping

• Installation of operators and auxiliary devices

• Custom machining – milling, counter-boring, spot-facing, blind-tapped holes, etc

• Installation and wiring of internal terminal blocks and control components

• UL Listed NNNY populated / wired control panels

• Multiple coating options for additional corrosion resistance

• Captive cover bolts

• Quad-lead cover bolts

• Auxiliary switches, breather/drain, shunt trip, under-voltage release

Material

• Enclosures cast from proprietary 359 aluminum alloy

• Standard stainless steel cover bolts are 316L

• XSM panels are #12 gauge galvanized steel (.108” thick)

• XSA panels are #10 gauge aluminum (.100 thick)

• Hinge blocks are 359 aluminum, pins and hardware are 303 stainless steel

View full details

Product Information

Catalog

Drawings

XCBSAQ PDF | DWG

XCBSBQ PDF | DWG

XCBSLQ PDF | DWG

XCBSMQ PDF | DWG

XCBSN PDF | DWG

XMSB PDF | DWG

XMSD PDF | DWG

XMSH PDF | DWG

XMSQ PDF | DWG

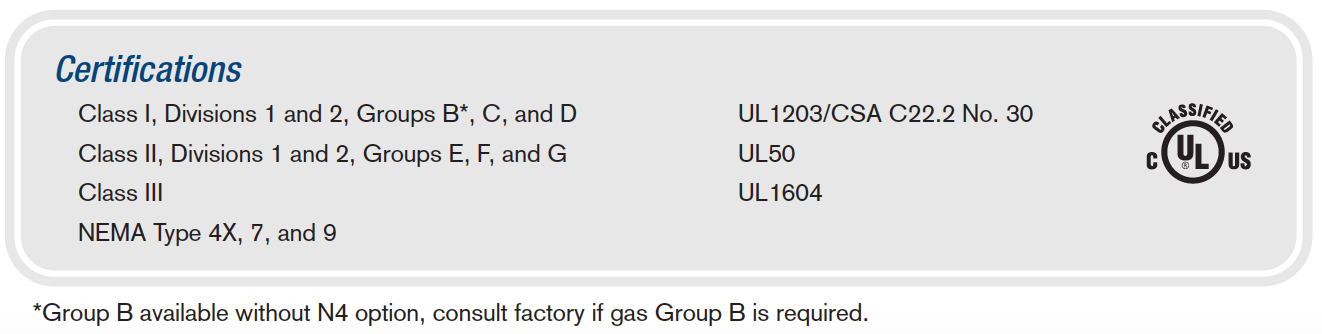

Certifications
