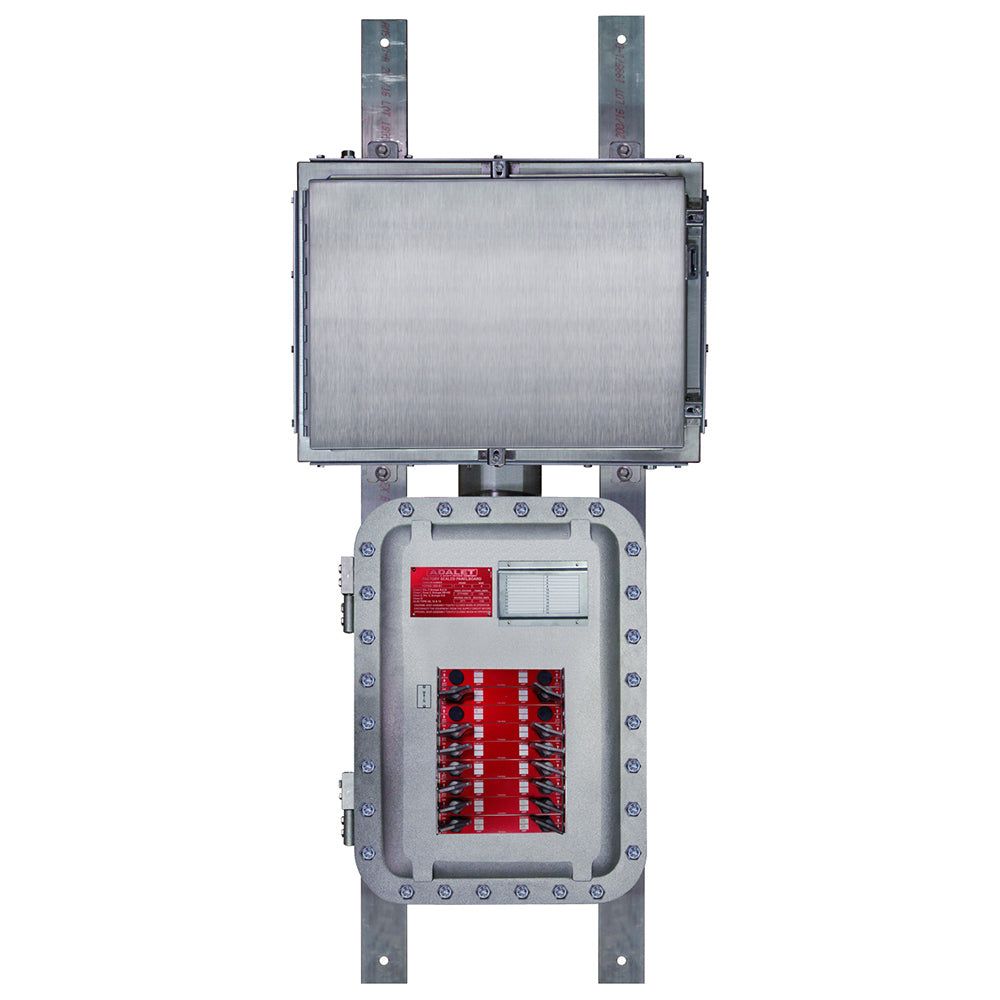

Factory Sealed Division 2 Panelboards - X2PB - Back Fed Main Breaker

Factory Sealed Division 2 Panelboards - X2PB - Back Fed Main Breaker

This design offers sufficient gutter space on sides to allow through wiring and easy lug connection. All enclosures are furnished with hinges, stainless steel quad lead cover bolts and are provided with NEMA 4 gasketing. All covers are removable for clear access to breakers and gutter space. The compact design of rectangular housings permits close grouping on switch racks and other structures. No additional space is required for cover removal except from the front.

Standard Features

Design Options

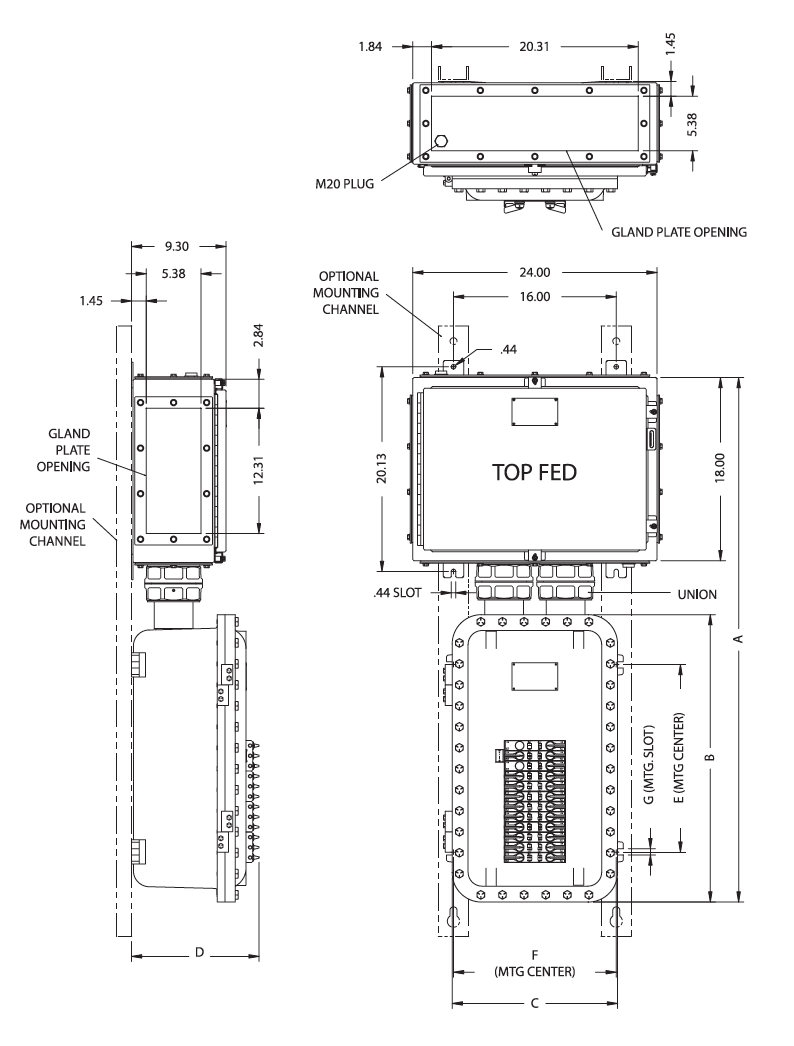

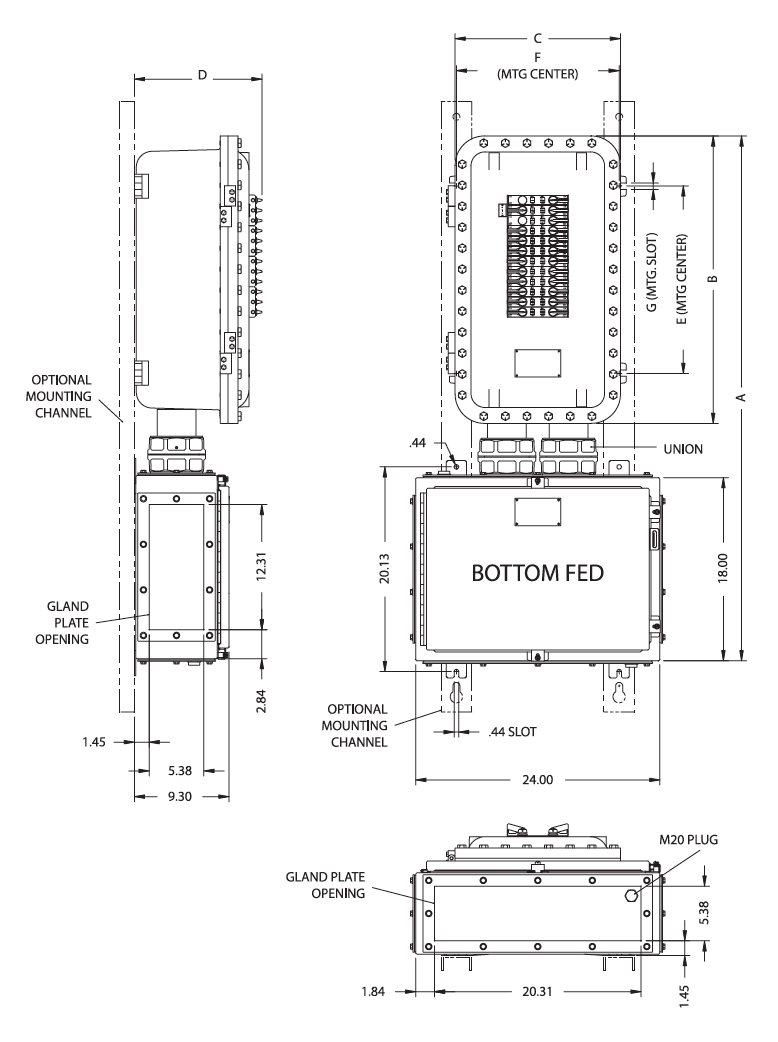

Dimensions

View full details

PRODUCT INFORMATION

Catalog

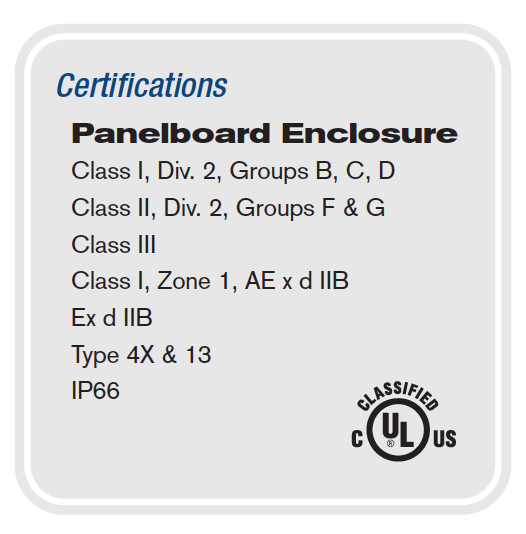

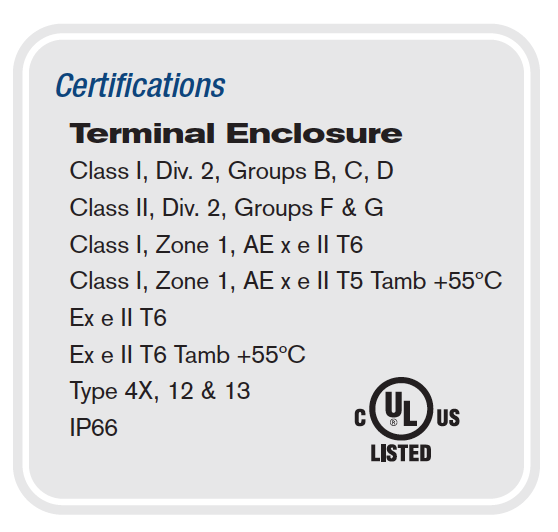

Certifications
